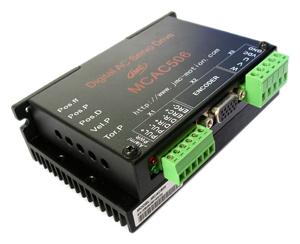

MCAC506 Digital AC Servo

MCAC506.pdf （219KB）

（Please calculation formula and fill in the text box at the right side of the answer,Click picture can be replaced.）

Introduction

MCAC506 all-digital AC servo drive system adopts high-performance digital signal processor (DSP) and integrated circuit, and come out to be a cost effective product with simple circuit, high integration, easy operation, and strong practicability. MCAC506 provide three feedback loops: position loop, velocity loop and current loop. Three work control mode: position, velocity and torque. MCAC506 matches with AC servo motor under 50V and 200W.

Features

Position control: light isolate input PULSE/DIRECTION or CW/CCW signal;
Speed control: input simulate 0-3.3V voltage signal (speed input by Pos.ff);
Torque control: input simulate 0-3.3V voltage signal (torque input by Pos.ff);
Light isolation servo reset input interface ERC;
Light isolation servo failure alarm output interface ALM;
Width of current loop (-3dB) 2KHz (standard);
Width of velocity loop: 500 Hz (standard);
Width of position loop: 200 Hz (standard);
Quadrature encoder input interface at motor side: differential input (26LS32);
Allow parameters download by pc or text displayer through interface RS232C;
Perfect protection against overload, I2T, over-voltage, over current, overheating, short circuit, circuit interruption, chip damage;
Green light for on, red light for protected mode or offline.

Specification

Input DC voltage range 20—50v(standard);
Continuous Output power:200W;
Continuous output current:6A 32KHz PWM;
Overload output current: 18A(3s);
Protection:
Over current initiated peak value: 30A±10%;
Overload I2T current initiated value: 300% 5s;
Overheating initiated value: 80℃;
Over voltage initiated value: 65 v;
Under Voltage initiated value: 18V;
Maximum pulse input frequency:300K;
Maximum RS232C speed: 19.6Kbps (an extra transfer interface required);
Working environment:
No dust, no oil mist and no corrosive air;
Working temperature: 0-50℃;
Storage temperature: -20--+80℃;
Humidity:40-90RH;
Cooling method: natural air cooling and forced air cooling;
Dimension: 118 x 76 x 35 mm
Weight: 200g
