Introduction

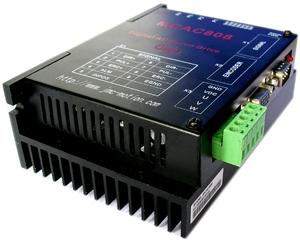

MCAC808 all-digital AC servo drive system adopts high-performance digital signal processor (DSP) and integrated circuit, and come out to be a cost effective product with simple circuit, high integration, easy operation, and strong practicability. MCAC808 provide three feedback loops: position loop, velocity loop and current loop. Three work control mode: position, velocity and torque. MCAC808 matches with AC servo motor under 80V and 400W.
Features
- Position control: light isolate input PULSE/DIRECTION or CW/CCW signal;
- Speed control: input simulate 0-3.3V voltage signal (speed input by P1);
- Torque control: input simulate 0-3.3V voltage signal (torque input by P1);
- Light isolation servo reset input interface ERC;
- Light isolation servo failure alarm output interface ALM;
- Width of current loop (-3dB) 2KHz (standard);
- Width of velocity loop: 500 Hz (standard);
- Width of position loop: 200 Hz (standard);
- Quadrature encoder input interface at motor side: differential input (26LS32);
- Allow parameters download by pc or text displayer through interface RS232C;
- Perfect protection against overload, I2T, over-voltage, over current, overheating, short circuit, circuit interruption, chip damage;
- Green light for on, red light for protected mode or offline.
Specification
|
