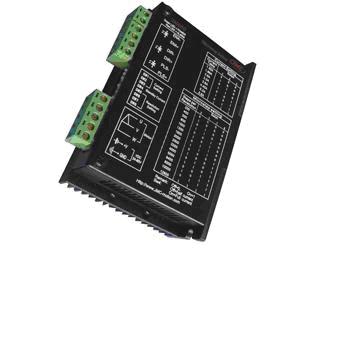

3 phase Microstepping Driver 3M660

3M660.pdf （75KB）
Click picture can be replaced
（Please calculation formula and fill in the text box at the right side of the answer,Click picture can be replaced.）

1. Introduction
3M660 is a constant torque microstepping driver, voltage range from 24-58VDC, it’s suitable for various 3-phase NEMA23 & NEMA34 hybrid stepper motor.  With the build-in constant current chopping circuit similar to servo driver, the motor run stable without vibration and noise in low speed.  The torque in high speed is far better than traditional 3-phase and 5-phase stepper motor because of the high voltage.  The precision can be high to 12800 steps/rev.

2. Electric Specifications
Description
Min.
Typical
Max.
Unit
Peak Output Current
1.35
-
5.8
Amps
Supply voltage
24
36
58
VDC
Logic signal current
-
10
-
mA
Pulse input frequency
0
-
200
Khz
Pulse low level time
2.5
-
-
ms

3. Environment
Cooling
Natural cooling or forced wind cooling
Environment
Space
Avoid dust, oil fog & corrosive gases
Storage temperature
-10℃ - 80℃
Working temperature
65℃ Max
Humidity
<80%RH
Vibration

5.9m/s² Max
Weight

0.26 kgs



4. Setting current and microstepping
SW1, SW2, SW3 used for setting current
SW4 use for half and full current, ON / full current, OFF/ half current
SW5, SW6, SW7, SW8 used for setting microstepping
OFF=0, ON=1

Current setting:

RMS current
SW1
SW2
SW3
1.35A
0
0
0
1.86A
1
0
0
2.6A
0
1
0
3.2A
1
1
0
3.8A
0
0
1
4.45A
1
0
1
5.2A
0
1
1
5.8A
1
1
1

Microstepping setting:

Step/rev.(for 1.8°/motor)
SW5
SW6
SW7
SW8
200
0
0
0
0
400
1
0
0
0
500
0
1
0
0
800
1
1
0
0
1000
0
0
1
0
1250
1
0
1
0
1600
0
1
1
0
2000
1
1
1
0
2500
0
0
0
1
3200
1
0
0
1
4000
0
1
0
1
5000
1
1
0
1
6400
0
0
1
1
8000
1
0
1
1
10000
0
1
1
1
12800
1
1
1
1
