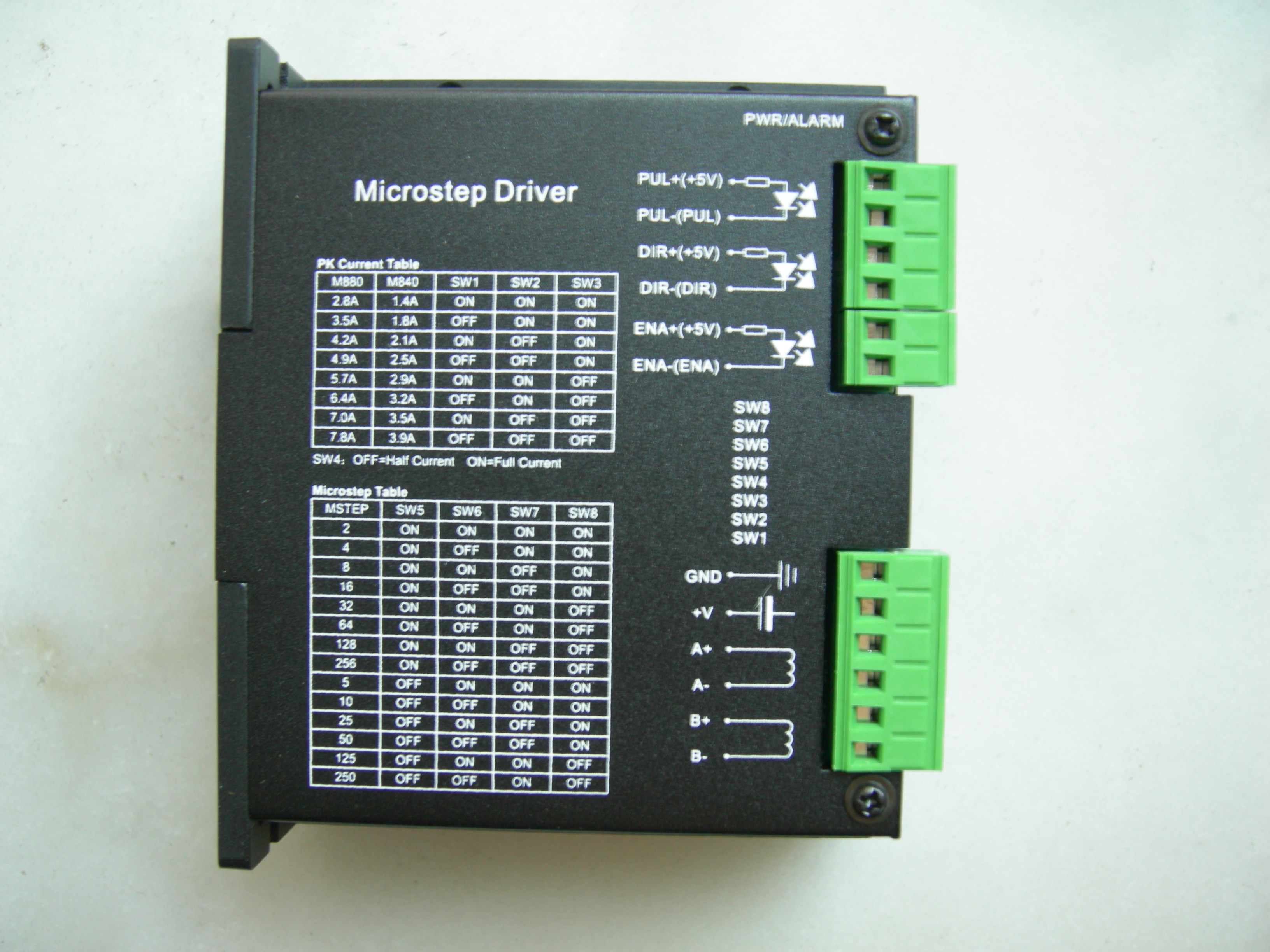

2 phase Microstepping Driver 2MSD7880

2MSD7880.pdf （48KB）
Click picture can be replaced
（Please calculation formula and fill in the text box at the right side of the answer,Click picture can be replaced.）

Brief Introduction
2MSD7880 is a high performance microstepping driver, it is suitable for driving any 2-phase and 4-phase hybrid step motors of NEMA34 & 43 with up to 8.0A per phase current capability.

Based on the build-in advanced module, the driver using sinusoidal wave current control technology, so the stepper motor work with more speed and power.  The input voltage ranges from 24VDC – 80VDC.

Features
  •          Low noise, high stability
  •          14 selectable resolutions (decimal & binary)
  •          Special control circuit lowers noise and enhances stability
  •          Bi-polar constant chopping technology provides high speed and power
  •          Idle-current selection (with SW4)
  •          Opto-isolated input/output signals
  •          DIP switch current setting with 8 different value, up to 7.8A peak
  •          Input voltage from DC24-80V
  •          Size of 119 x 97 x 48 mm

Applications
2MSD7880 can be used for 2-phase hybrid stepping motors of NEMA34 & 43 with a phase current of up to 8.0A, it’s suitable for a wide range of machines, such as lighting machines, roboticized machines, instruments, POS machines, engraving machines, labeling machines, laser cutters, packaging machines and semiconductor devices.

DIP Current Setting:

Current
SW1
SW2
SW3
2.8A
ON
ON
ON
3.5A
OFF
ON
ON
4.2A
ON
OFF
ON
4.9A
OFF
OFF
ON
5.7A
ON
ON
OFF
6.4A
OFF
ON
OFF
7.0A
ON
OFF
OFF
7.8A
OFF
OFF
OFF



Microstep Resolution Setting

Microstep
Step/rev.(for 1.8°/motor)
SW5
SW6
SW7
SW8
2
400
ON
ON
ON
ON
4
800
ON
OFF
ON
ON
8
1600
ON
ON
OFF
ON
16
3200
ON
OFF
OFF
ON
32
6400
ON
ON
ON
OFF
64
12800
ON
OFF
ON
OFF
128
25600
ON
ON
OFF
OFF
256
51200
ON
OFF
OFF
OFF
5
1000
OFF
ON
ON
ON
10
2000
OFF
OFF
ON
ON
25
5000
OFF
ON
OFF
ON
50
10000
OFF
OFF
OFF
ON
125
25000
OFF
ON
ON
OFF
250
50000
OFF
OFF
ON
OFF
