AC Servo

servo driver user manual.pdf （2588KB）
（Please calculation formula and fill in the text box at the right side of the answer,Click picture can be replaced.）

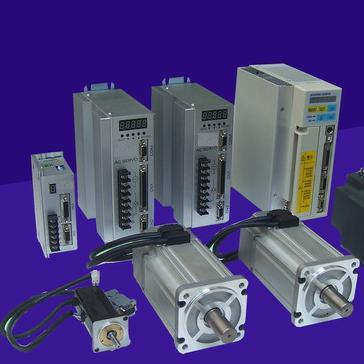

Product checking Please check following when opening the package:          If product type number same as shown in the outer box          If there is damage or scratch in the product outlook          If there are screws loosed or lost          If all of the accessories all in OK          If anything of above happens, please contact with the seller.         Product List The whole servo set contains following parts, please check:         Servo driver         Servo motor         Encoder cable         Motor UVW cable         D type 37 pin connector         D type 37 pin protect cover        Temperature   Condition Ambient temp. Driver: 0～55℃ Motor: 0～40℃ Ambient humidity Less than 85%RH Storage temp. -20～80℃            Mount driver and distance            The cooler is natural cooling, so the distance between each driver must be at least 25mm.        In the transformer box, temperature increment must take into consideration, please reserve enough     space  to get enough atmosphere for heat dissipation and effective cooling.
