NEMA23 Step Motor
|
Electrical Specifications |
|
Series Model |
Step Angle (°) |
Motor Length (mm) |
Rated Current (A) |
Phase Resistance ( Ω ) |
Phase Inductance (mH) |
Holding Torque (N.cm Min) |
Detent Torque (N.cm Max) |
Rotor Inertia (g.cm 2 ) |
Lead Wire (No.) |
Motor Weight (g) |
|
57HS0601 |
1.8 |
41 |
1.0 |
5.2 |
5.5 |
40 |
2.5 |
150 |
6 |
470 |
|
57HS0405 |
1.8 |
41 |
0.62 |
12 |
24 |
55 |
2.5 |
150 |
4 |
470 |
|
57HS0408 |
1.8 |
41 |
2.0 |
1.2 |
2.5 |
55 |
2.5 |
150 |
4 |
470 |
|
57HS4412 |
1.8 |
45 |
0.62 |
12 |
26 |
80 |
2.8 |
190 |
4 |
520 |
|
57HS4425 |
1.8 |
45 |
2.5 |
1.0 |
2.2 |
80 |
2.8 |
190 |
4 |
520 |
|
57HS5406 |
1.8 |
51 |
0.62 |
13 |
28 |
110 |
2.8 |
190 |
4 |
520 |
|
57HS5425 |
1.8 |
51 |
2.5 |
1.2 |
3.2 |
110 |
2.8 |
190 |
4 |
520 |
|
57HS5602 |
1.8 |
51 |
0.8 |
6.8 |
9.2 |
62 |
3.0 |
230 |
6 |
590 |
|
57HS6602 |
1.8 |
56 |
1.5 |
3.2 |
5.5 |
90 |
3.5 |
280 |
6 |
590 |
|
57HS6403 |
1.8 |
56 |
2.5 |
1.3 |
4.2 |
110 |
3.5 |
280 |
4 |
680 |
|
57HS6430 |
1.8 |
56 |
3.0 |
0.8 |
2.4 |
110 |
3.5 |
280 |
4 |
680 |
|
57HS6404 |
1.8 |
56 |
4.2 |
0.4 |
1.2 |
110 |
3.5 |
280 |
4 |
680 |
|
57HS7401 |
1.8 |
64 |
1.0 |
7.5 |
20 |
150 |
5.0 |
380 |
4 |
850 |
|
57HS7425 |
1.8 |
64 |
2.5 |
1.5 |
4.5 |
150 |
5.0 |
380 |
4 |
850 |
|
57HS7430 |
1.8 |
64 |
3.0 |
0.8 |
2.3 |
150 |
5.0 |
380 |
4 |
850 |
|
57HS7404 |
1.8 |
64 |
4.2 |
0.55 |
1.2 |
150 |
5.0 |
380 |
4 |
850 |
|
57HS8603 |
1.8 |
76 |
1.5 |
4.5 |
9.2 |
140 |
6.0 |
440 |
6 |
1050 |
|
57HS8425 |
1.8 |
76 |
2.5 |
1.8 |
6.5 |
180 |
6.0 |
440 |
4 |
1050 |
|
57HS8430 |
1.8 |
76 |
3.0 |
1.0 |
3.5 |
180 |
6.0 |
440 |
4 |
1050 |
|
57HS8404 |
1.8 |
76 |
4.2 |
0.6 |
1.8 |
180 |
6.0 |
440 |
4 |
1050 |
|
57HS1430 |
1.8 |
100 |
3.0 |
1.4 |
5.5 |
250 |
10 |
680 |
4 |
1250 |
|
57HS1410 |
1.8 |
100 |
4.2 |
0.8 |
3.0 |
250 |
10 |
680 |
4 |
1250 |
|
57HS2430 |
1.8 |
112 |
3.0 |
1.6 |
6.8 |
280 |
12 |
800 |
4 |
1400 |
|
57HS2410 |
1.8 |
112 |
4.2 |
0.9 |
3.8 |
280 |
12 |
800 |
4 |
1400 |
|
|
*Above are our typical type, we can make customized motors according to clients’ special request and drawing. |

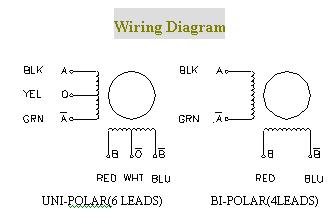

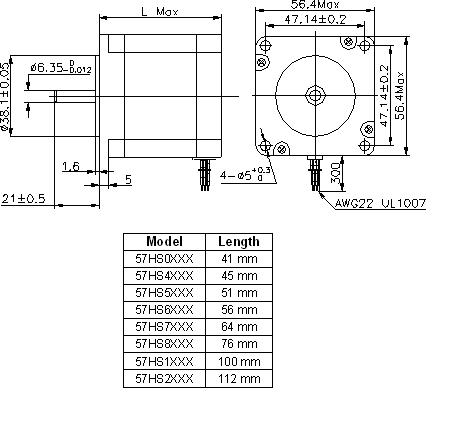

Mechanical Dimensions:
|
|
|
