NEMA17 Step Motor
|
Electrical Specifications |
|
Series Model |
Step Angle (°) |
Motor Length (mm) |
Rated Current (A) |
Phase Resistance ( Ω ) |
Phase Inductance (mH) |
Holding Torque (N.cm Min) |
Detent Torque (N.cm Max) |
Rotor Inertia (g.cm 2 ) |
Lead Wire (No.) |
Motor Weight (g) |
|
42HS2408 |
1.8 |
28 |
0.6 |
8 |
10 |
12 |
1.6 |
34 |
4 |
150 |
|
42HS3401 |
1.8 |
34 |
1.3 |
2.4 |
2.8 |
28 |
1.6 |
34 |
4 |
220 |
|
42HS3410 |
1.8 |
34 |
1.7 |
1.2 |
1.8 |
28 |
1.6 |
34 |
4 |
220 |
|
42HS3430 |
1.8 |
34 |
0.4 |
30 |
35 |
28 |
1.6 |
34 |
4 |
220 |
|
42HS3630 |
1.8 |
34 |
0.4 |
30 |
18 |
21 |
1.6 |
34 |
6 |
220 |
|
42HS3616 |
1.8 |
34 |
0.16 |
75 |
40 |
14 |
1.6 |
34 |
6 |
220 |
|
42HS4401 |
1.8 |
40 |
1.7 |
1.5 |
2.8 |
40 |
2.2 |
54 |
4 |
280 |
|
42HS4402 |
1.8 |
40 |
1.3 |
2.5 |
5.0 |
40 |
2.2 |
54 |
4 |
280 |
|
42HS4602 |
1.8 |
40 |
1.2 |
3.2 |
2.8 |
28 |
2.2 |
54 |
6 |
280 |
|
42HS4630 |
1.8 |
40 |
0.4 |
30 |
28 |
28 |
2.2 |
54 |
6 |
280 |
|
42HS8401 |
1.8 |
48 |
1.7 |
1.8 |
3.2 |
52 |
2.6 |
68 |
4 |
350 |
|
42HS8402 |
1.8 |
48 |
1.3 |
3.2 |
5.5 |
52 |
2.6 |
68 |
4 |
350 |
|
42HS8403 |
1.8 |
48 |
2.3 |
1.2 |
1.6 |
46 |
2.6 |
68 |
4 |
350 |
|
42HS8630 |
1.8 |
48 |
0.4 |
30 |
38 |
34 |
2.6 |
68 |
6 |
350 |
|
|
*Above are our typical type, we can make customized motors according to clients’ special request and drawing. |

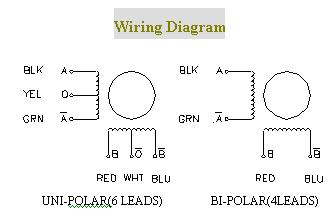

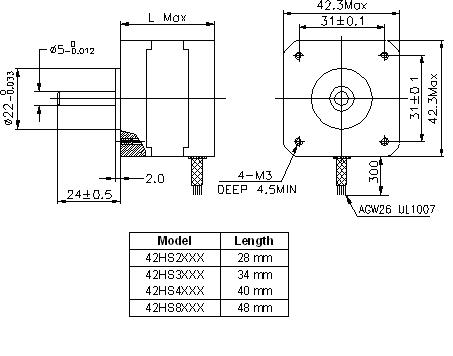

Mechanical Dimensions
|
|
|
