NEMA16 Step Motor
|
Electrical Specifications |
|
Series Model |
Step Angle (°) |
Motor Length (mm) |
Rated Current (A) |
Phase Resistance ( Ω ) |
Phase Inductance (mH) |
Holding Torque (N.cm Min) |
Detent Torque (N.cm Max) |
Rotor Inertia (g.cm 2 ) |
Lead Wire (No.) |
Motor Weight (g) |
|
39HS0401 |
1.8 |
20 |
0.42 |
18 |
12 |
8 |
0.5 |
12 |
4 |
100 |
|
39HS2410 |
1.8 |
26 |
0.6 |
9 |
10 |
14 |
0.8 |
14 |
4 |
120 |
|
39HS3401 |
1.8 |
34 |
0.6 |
12 |
13 |
18 |
1.0 |
19 |
4 |
160 |
|
39HS3402 |
1.8 |
34 |
1.2 |
3.2 |
3.0 |
16 |
1.0 |
19 |
4 |
160 |
|
39HS3630 |
1.8 |
34 |
0.4 |
30 |
14 |
12 |
1.0 |
19 |
6 |
160 |
|
39HS4401 |
1.8 |
40 |
0.6 |
12 |
20 |
24 |
1.2 |
24 |
4 |
210 |
|
39HS4402 |
1.8 |
40 |
1.2 |
3.8 |
6.5 |
24 |
1.2 |
24 |
4 |
210 |
|
39HS4630 |
1.8 |
40 |
0.4 |
30 |
22 |
18 |
1.2 |
24 |
6 |
210 |
|
|
*Above are our typical type, we can make customized motors according to clients’ special request and drawing. |

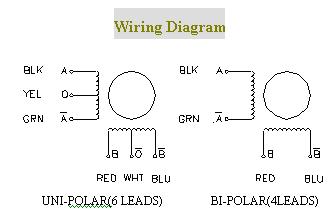

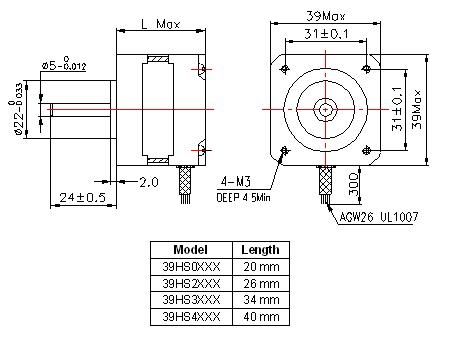

Mechanical Dimensions:
|
|
|
